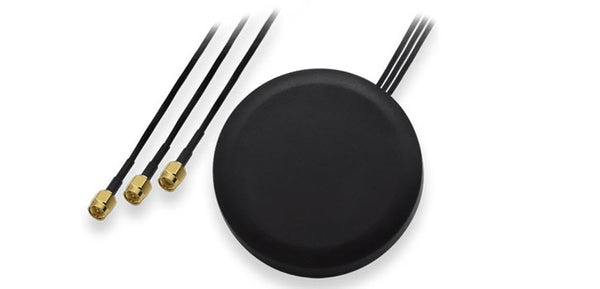

Teltonika Combo Siso Cellular, Gps And Wifi Roof Antenna
Overview
Teltonika Combo SISO Cellular, GPS and WiFi Roof Antenna with 3 meter cable and SMA Connectors
Details
Manufacturer's Product Code
PR1KCS28 (003R-00254)
Frequency Range
(GNSS) 1575.42-1610 MHz, (LTE) 850/900/1800/1900/2170 MHz, (WiFi) 2350-2500 MHz
Polarization
(GNSS) RHCP, (LTE) Vertical, (WiFi) Vertical
Impedance (All)
50 O
Gain
(GNSS LNA Gain) 28 dB, (LTE) 3.5dBi, (WiFi) 2.5dBi
GNSS Supply Voltage
2.7-5 ±0.5 VDC
GNSS Current Consumption
< 15 mA
VSWR
(GNSS LNA V.S.W.R) <1.65, (LTE) <1.5:1, (WiFi) <1.5:1
Connectors
(GNSS) SMA Male, (LTE) SMA Male, (WiFi) RP-SMA Male
Mounting Method
Screw
Radome Ingress Protection rating
IP67
Radome Material
ABS
Weight
<250g
Housing Dimensions
Ø 80x15 mm
Cable
3x RG174, 3000 mm
RoHS Compliant
Yes
Features
- Supports 3G, 4G, LTE, GNSS, WiFi
Specifications
TBC
