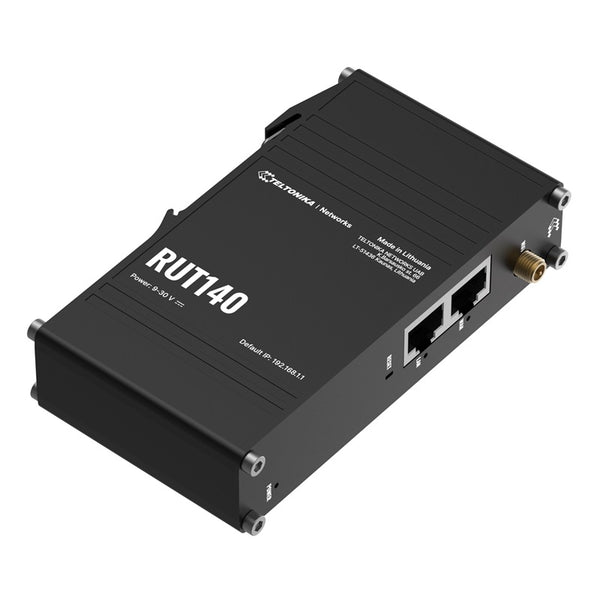

Teltonika Rut140 Din Rail Mountable Industrial Ethernet Wi-Fi Router

Teltonika RUT140 DIN Rail Mountable Industrial Ethernet Wi-Fi Router. The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

Details Product code RUT1400PRT01 CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB, DDR2 FLASH storage 16 MB serial NOR flash Ethernet 2 x RJ45 ports, 1 x WAN + 1 x LAN, 10/100 Mbps Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect SSID/ESSID ESSID stealth mode Wi-Fi users Up to 50 simultaneous connections Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayed, BSS transition management (802.11v), radio resource measurement (802.11k) Power Connector 3-pos plugable terminal block Input voltage range 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption Idle: < 1 W / Max: < 2 W Status LEDs 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) Monitoring and Management WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS Power 1 x 3-pin power connector Antennas 1 x RP-SMA for Wi-Fi Reset Button Reboot/User default reset/Factory reset button Casing material Aluminium housing Dimensions (W x H x D) 113.10 x 25 x 68.6 mm Weight 142.3 g Mounting options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30 Regulatory CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH
