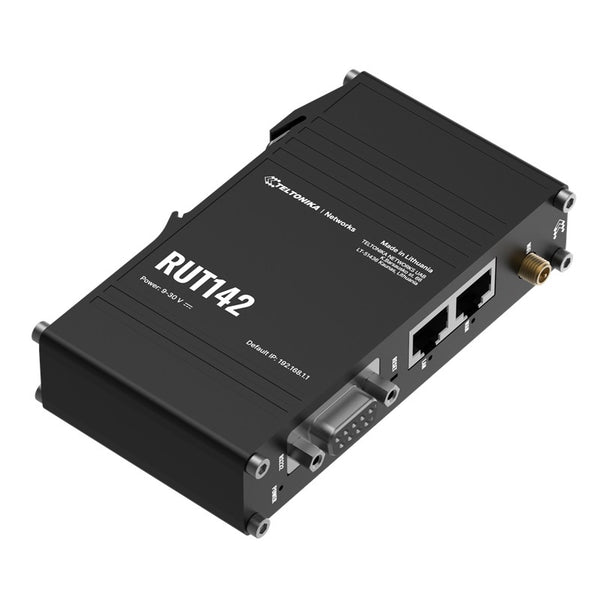

Teltonika Rut142 Din Rail Mount Industrial Ethernet Wi-Fi Router

Teltonika RUT142 DIN Rail Mount Industrial Ethernet Wi-Fi Router. The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

Details Product code RUT1420PRT01 CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB, DDR2 FLASH storage 16 MB serial NOR flash WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules, TTL target customization Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag-based VLAN separation VPN OpenVPN, OpenVPN Encryption 27 Methods, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc OPC UA Client, Server - TCP Data To Server HTTP(S), MQTT, Azure MQTT Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. Monitoring and Management WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS Power Connector 3-pos pluggable terminal block, 3-pin power connector Input voltage range 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max (Power Supply not Included) PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption Idle: < 1 W / Max: < 2 W Status LEDs 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED Antennas 1 x RP-SMA for Wi-Fi RS232 1 x DB9 socket Reset Reboot/User default reset/Factory reset button Casing material Aluminium housing Dimensions (W x H x D) 113.10 x 25 x 68.6 mm Weight 149.2 g Mounting options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30 Regulatory CE, UKCA, RCM, FCC, IC, CB, WEEE, RoHS, REACH
