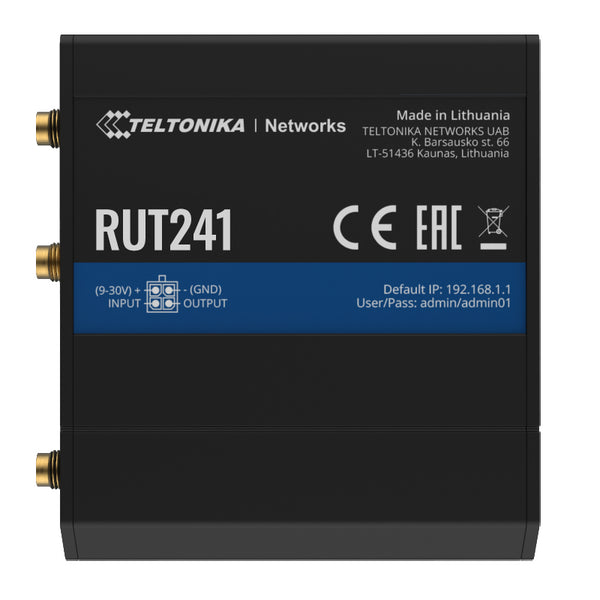

Teltonika Rut241 Industrial 4g/Lte Wifi Cellular Router With Digital Io

Teltonika RUT241 Industrial 4G/LTE WiFi Cellular Router with Digital IO. Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.

Details Product code RUT241065000 Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B28, 4G (LTE-TDD): B40, 3G: B1,B5, B8, 2G: B3, B5, B8 Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID CPU Mediatek MIPS 24Kc 580 MHz RAM 128 MB, DDR2 FLASH storage 16 MB, SPI Flash SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough Router assigns its mobile WAN IP address to another device on LAN Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA) WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation Ethernet WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX Ethernet LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA Power Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC Power consumption < 6.5 W Max Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30
